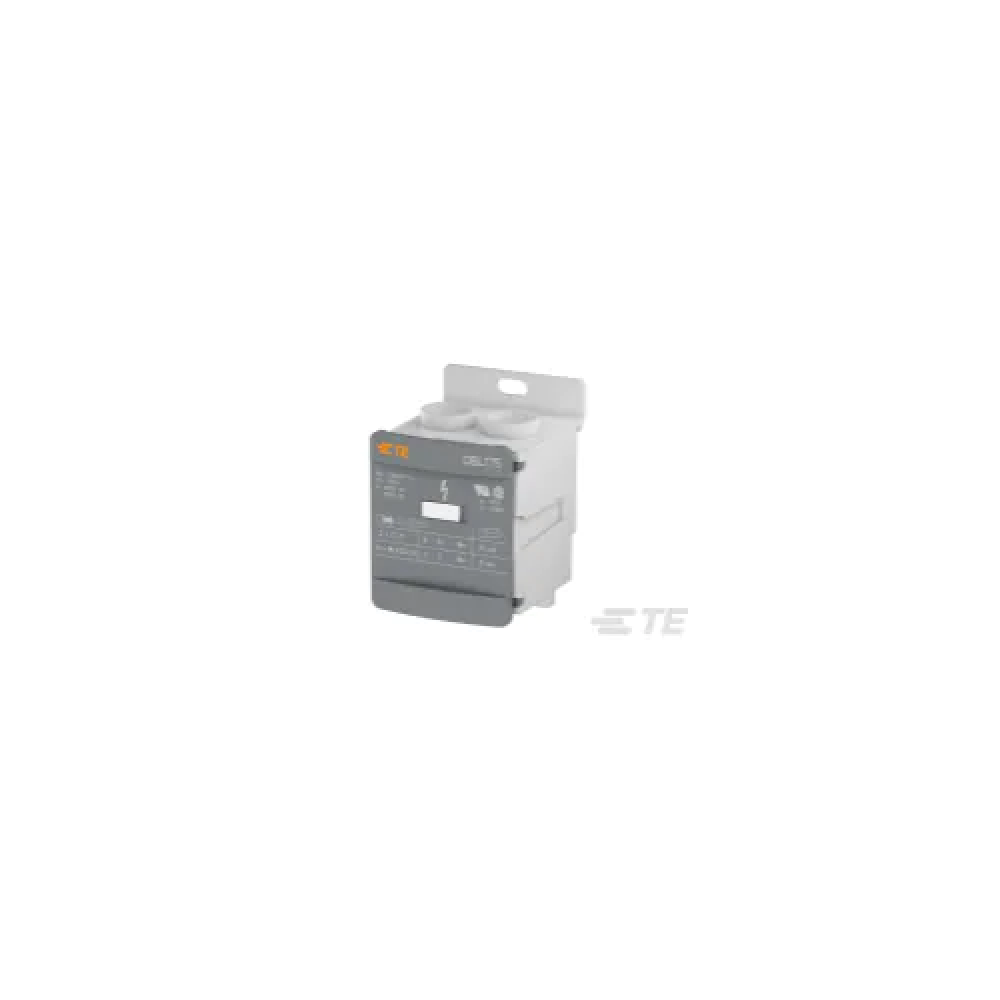

DBL175
- TE Internal #: 1SNL317510R0000
- TE Internal Description: DBL175
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Current Rating (IEC) (A): 175
- Current Rating (UL) (A): 175
- Number of Positions : 12
| TEKLİF VE BİLGİ İSTEYİN |
Product Type Features
- Sealable : No
- Connector & Contact Terminates To : Wire & Cable
Configuration Features
- Number of Circuits : 1
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Number of Positions : 12
- Number of Levels : 1
- Block Configuration : Feed-Through
- Number of Poles – Output 1 : 10
- Number of Poles – Main Circuit : 2
Electrical Characteristics
- Current Rating (IEC) (A): 175
- Current Rating (UL) (A): 175
- Input Current (Max) (A): 175
- Dielectric Test Voltage (V): 2200
- Voltage Rating (IEC) (VAC): 1000
- Short Circuit Current Rating (kA): 100
- Peak Withstanding Current Rating (kA): 30
- Voltage Rating (CSA) (V): 1000
- Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
- Voltage Rating (IEC) (VDC): 1500
- Short-Time Withstanding Current Rating @ 1s (A): 6000
- Power Loss (W): 5.6
- Impulse Withstanding Voltage Rating (IEC) (V): 8000
Body Features
- Product Weight : 200 g [ 7.055 oz ]
Contact Features
- Contact Current Rating (Max) (A): 175
Mechanical Attachment
- Connector Mounting Type : DIN Rail
- Tightening Torque – Main Circuit (in-lbs): 53 – 88
- Tightening Torque – Output 1 (in-lbs): 18 – 26.5
- Tightening Torque – Main Circuit (Nm): 6 – 10
- Connection Type : Screw
- Tightening Torque – Output 1 (Nm): 2 – 3
- DIN Rail Mounting Type : TH35-15, TH35-7.5
Housing Features
- Housing Color : Gray
- Housing Material : Polyamide
Dimensions
- Product Height : 72.5 mm [ 2.557 in ]
- Product Width : 46.2 mm [ 1.63 in ]
- Product Depth : 52.3 mm [ 1.845 in ]
- Rated Cross Section (AWG): 0
- Rated Cross Section (mm²): 50
- Product Spacing : 46.2 mm [ 1.81 in ]
- Tool Size – Main Circuit : 5 mm [ .197 in ]
- Hole Diameter – Main Circuit : 11.8 mm [ .465 in ]
- Wire Stripping Length – Output 1 : 11 mm [ .43 in ]
- Tool Size – Output 1 : 5.5 mm [ .217 in ]
- Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 6
- Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 6
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (AWG): 6 – 00
- Hole Diameter – Output 1 : 6.4 mm [ .252 in ]
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (mm²): 10 – 70
- Wire Stripping Length – Main Circuit : 15 mm [ .591 in ]
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (AWG): 8 – 0
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (mm²): 10 – 50
- Output 1 Capacity – 1 Insulated Ferrule (AWG): 14 – 6
- Output 1 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 16
Usage Conditions
- Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
- Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
- Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94V-0
- IP Rating : IP10
- Tool – Main Circuit : Allen Key
- Tool – Output 1 : Flat Screwdriver
