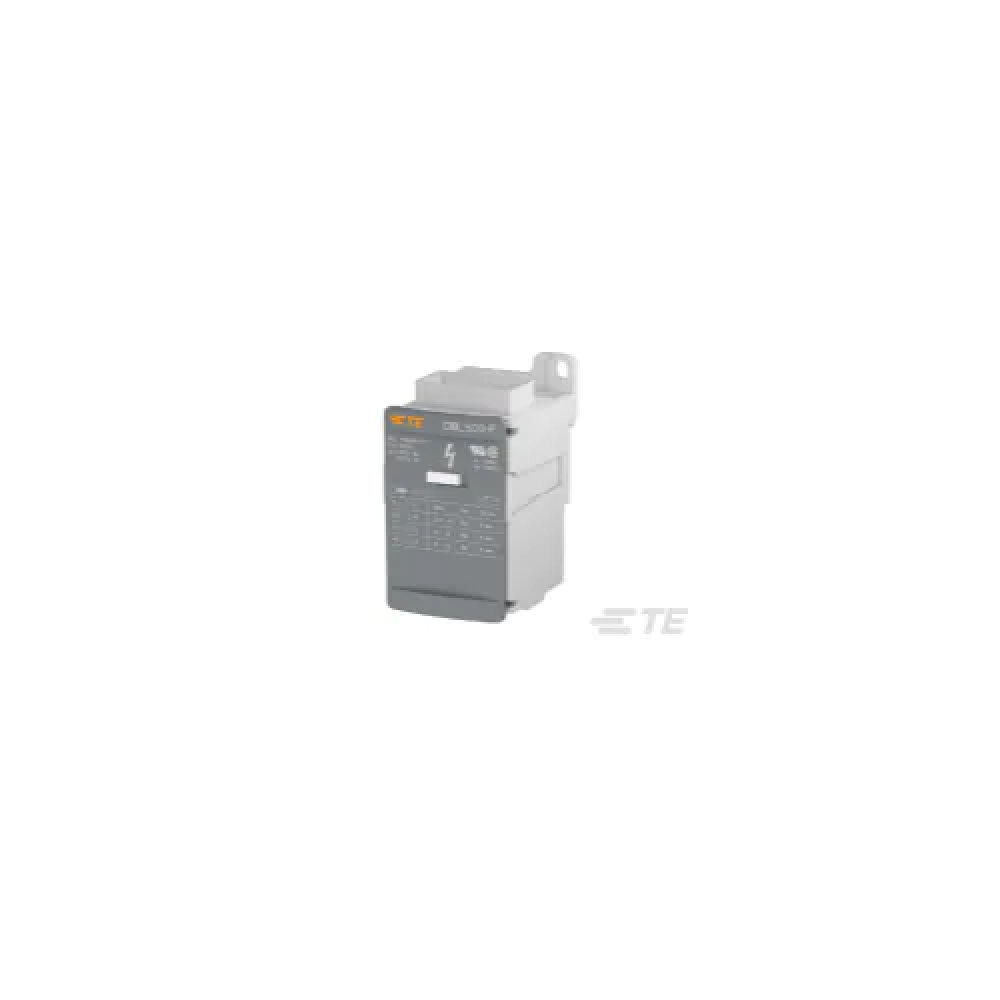

DBL500-F
- TE Internal #: 1SNL350060R0000
- TE Internal Description: DBL500-F
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Current Rating (IEC) (A): 500
- Current Rating (UL) (A): 420
- Number of Positions : 12
| TEKLİF VE BİLGİ İSTEYİN |
Product Type Features
- Sealable : No
- Connector & Contact Terminates To : Wire & Cable
Configuration Features
- Number of Circuits : 1
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Number of Positions : 12
- Number of Levels : 1
- Number of Poles – Output 2 : 5
- Number of Poles – Output 1 : 2
- Number of Poles – Output 3 : 4
- Block Configuration : Feed-Through
- Number of Poles – Main Circuit : 1
Electrical Characteristics
- Current Rating (IEC) (A): 500
- Current Rating (UL) (A): 420
- Input Current (Max) (A): 500
- Short Circuit Current Rating (kA): 100
- Voltage Rating (IEC) (VDC): 1500
- Power Loss (W): 16
- Dielectric Test Voltage (V): 2200
- Voltage Rating (IEC) (VAC): 1000
- Peak Withstanding Current Rating (kA): 44
- Voltage Rating (CSA) (V): 1000
- Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
- Short-Time Withstanding Current Rating @ 1s (A): 28800
- Impulse Withstanding Voltage Rating (IEC) (V): 8000
Body Features
- Product Weight : 514.2 g [ 18.138 oz ]
Contact Features
- Contact Current Rating (Max) (A): 500
Mechanical Attachment
- Connector Mounting Type : DIN Rail, Panel Mount
- Tightening Torque – Output 2 (in-lbs): 18 – 26.5
- Tightening Torque – Main Circuit (in-lbs): 119.5
- Tightening Torque – Output 3 (in-lbs): 18 – 26.5
- Tightening Torque – Output 2 (Nm): 2 – 3
- Tightening Torque – Output 3 (Nm): 2 – 3
- Tightening Torque – Output 1 (in-lbs): 31 – 44
- Tightening Torque – Main Circuit (Nm): 13.5
- Connection Type : Screw
- DIN Rail Mounting Type : TH35-15, TH35-7.5
- Tightening Torque – Output 1 (Nm): 3.5 – 5
Housing Features
- Housing Color : Gray
- Housing Material : Polyamide
Dimensions
- Product Height : 103 mm [ 4.06 in ]
- Product Width : 46 mm [ 1.81 in ]
- Product Depth : 60 mm [ 2.36 in ]
- Product Spacing : 46 mm [ 1.81 in ]
- Tool Size – Main Circuit : 5 mm [ .2 in ]
- Wire Stripping Length – Output 2 : 11 mm [ .43 in ]
- Tool Size – Output 1 : 4 mm [ .16 in ]
- Output 3 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 10
- Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 35
- Hole Diameter – Output 2 : 6.59 mm [ .26 in ]
- Hole Diameter – Output 1 : 8.69 mm [ .34 in ]
- Wire Stripping Length – Output 3 : 11 mm [ .43 in ]
- Tool Size – Output 2 : 3 mm [ .19 in ]
- Wire Stripping Length – Main Circuit : 35 mm [ 1.38 in ]
- Output 1 Capacity – 1 Insulated Ferrule (AWG): 14 – 4
- Output 3 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 10
- Wire Stripping Length – Output 1 : 11 mm [ .43 in ]
- Input Dimensions – Main Circuit : 26 x 10.8 mm [ 1.02 x 0.43 in ]
- Output 2 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 6
- Tool Size – Output 3 : 3 mm [ .19 in ]
- Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 2
- Output 3 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 8
- Main Circuit Capacity – Solid Bar (mm): 12 x 4, 2x 20 x 5
- Hole Diameter – Output 3 : 5.7 mm [ .22 in ]
- Main Circuit Capacity – Flexible Bar (mm): 10 x 24 x 1, 3 x 9 x 0.8
- Output 2 Capacity – 1 Insulated Ferrule (AWG): 14 – 6
- Output 2 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 16
- Output 2 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 16
- Output 1 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 25
- Output 3 Capacity – 1 Insulated Ferrule (AWG): 14 – 8
Usage Conditions
- Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
- Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
- Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94V-0
- IP Rating : IP20
- Tool – Output 3 : Allen Key
- Tool – Main Circuit : Allen Key
- Tool – Output 1 : Allen Key
- Tool – Output 2 : Allen Key
