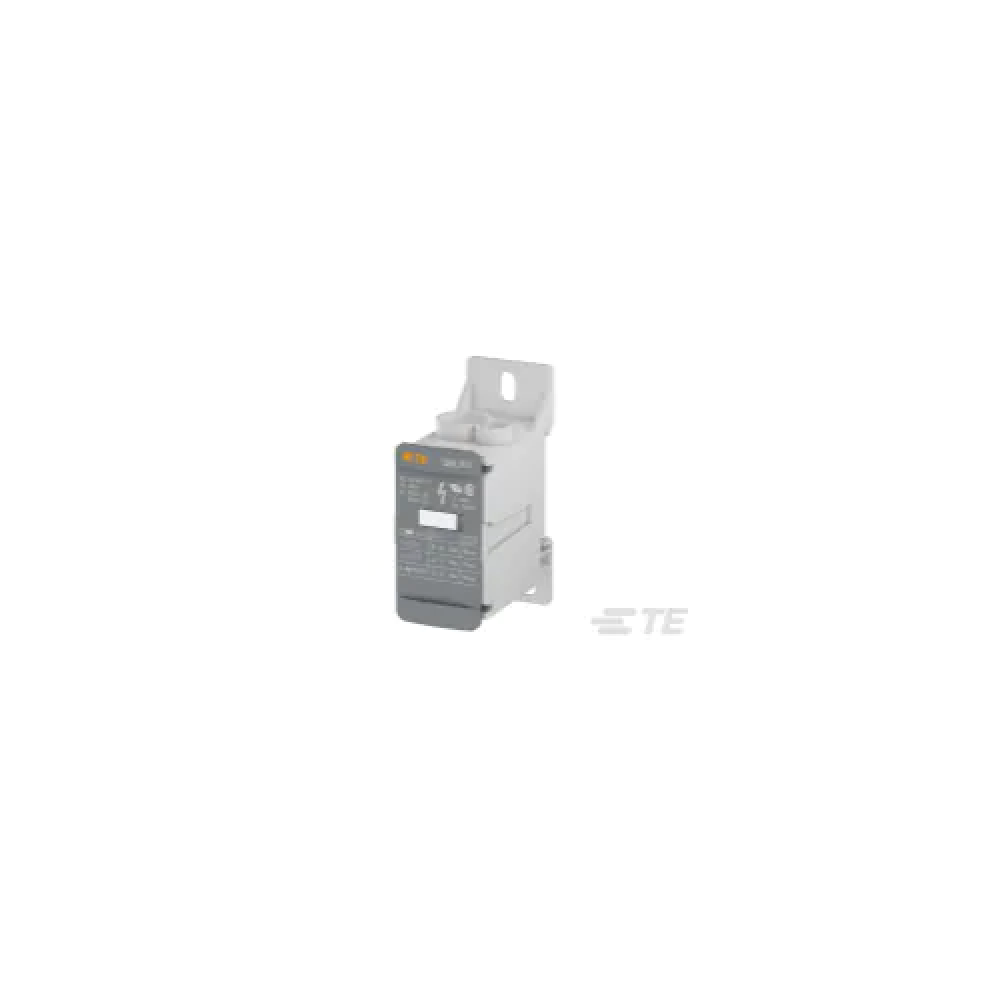

DBL160
- TE Internal #: 1SNL316010R0000
- TE Internal Description: DBL160
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Current Rating (IEC) (A): 160
- Current Rating (UL) (A): 160
- Number of Positions : 8
| TEKLİF VE BİLGİ İSTEYİN |
Product Type Features
- Sealable : No
- Connector & Contact Terminates To : Wire & Cable
Configuration Features
- Number of Circuits : 1
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Number of Positions : 8
- Number of Levels : 1
- Number of Poles – Output 2 : 6
- Number of Poles – Output 1 : 1
- Block Configuration : Feed-Through
- Number of Poles – Main Circuit : 1
Electrical Characteristics
- Current Rating (IEC) (A): 160
- Current Rating (UL) (A): 160
- Input Current (Max) (A): 160
- Short Circuit Current Rating (kA): 100
- Voltage Rating (IEC) (VDC): 1500
- Power Loss (W): 5.12
- Dielectric Test Voltage (V): 2200
- Voltage Rating (IEC) (VAC): 1000
- Peak Withstanding Current Rating (kA): 30
- Voltage Rating (CSA) (V): 1000
- Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
- Short-Time Withstanding Current Rating @ 1s (A): 6000
- Impulse Withstanding Voltage Rating (IEC) (V): 8000
Body Features
- Product Weight : 120 g [ 4.233 oz ]
Contact Features
- Contact Current Rating (Max) (A): 160
Mechanical Attachment
- Connector Mounting Type : DIN Rail
- Tightening Torque – Output 2 (in-lbs): 18 – 26.5
- Tightening Torque – Main Circuit (in-lbs): 53 – 88
- Tightening Torque – Output 2 (Nm): 2 – 3
- Tightening Torque – Output 1 (in-lbs): 18 – 26.5
- Tightening Torque – Main Circuit (Nm): 6 – 10
- Connection Type : Screw
- DIN Rail Mounting Type : TH35-15, TH35-7.5
- Tightening Torque – Output 1 (Nm): 2 – 3
Housing Features
- Housing Color : Gray
- Housing Material : Polyamide
Dimensions
- Product Height : 75 mm [ 2.645 in ]
- Product Width : 28.2 mm [ .995 in ]
- Product Depth : 50.7 mm [ 1.788 in ]
- Rated Cross Section (AWG): 0
- Rated Cross Section (mm²): 50
- Product Spacing : 28.2 mm [ 1.11 in ]
- Tool Size – Main Circuit : 5 mm [ .197 in ]
- Wire Stripping Length – Output 2 : 11 mm [ .43 in ]
- Hole Diameter – Main Circuit : 11.8 mm [ .465 in ]
- Tool Size – Output 1 : 3 mm [ .118 in ]
- Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 6 – 16
- Hole Diameter – Output 2 : 6.5 mm [ .256 in ]
- Hole Diameter – Output 1 : 6.8 mm [ .267 in ]
- Tool Size – Output 2 : 5.5 mm [ .217 in ]
- Wire Stripping Length – Main Circuit : 18 mm [ .709 in ]
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (mm²): 16 – 50
- Output 1 Capacity – 1 Insulated Ferrule (AWG): 14 – 6
- Wire Stripping Length – Output 1 : 11 mm [ .43 in ]
- Output 2 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 6
- Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 10 – 6
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (AWG): 6 – 00
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (mm²): 16 – 70
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (AWG): 6 – 0
- Output 2 Capacity – 1 Insulated Ferrule (AWG): 14 – 6
- Output 2 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 16
- Output 2 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 16
- Output 1 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 16
Usage Conditions
- Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
- Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
- Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94V-0
- IP Rating : IP10
- Tool – Main Circuit : Allen Key
- Tool – Output 1 : Allen Key
- Tool – Output 2 : Positive Drive Flat Screwdriver
