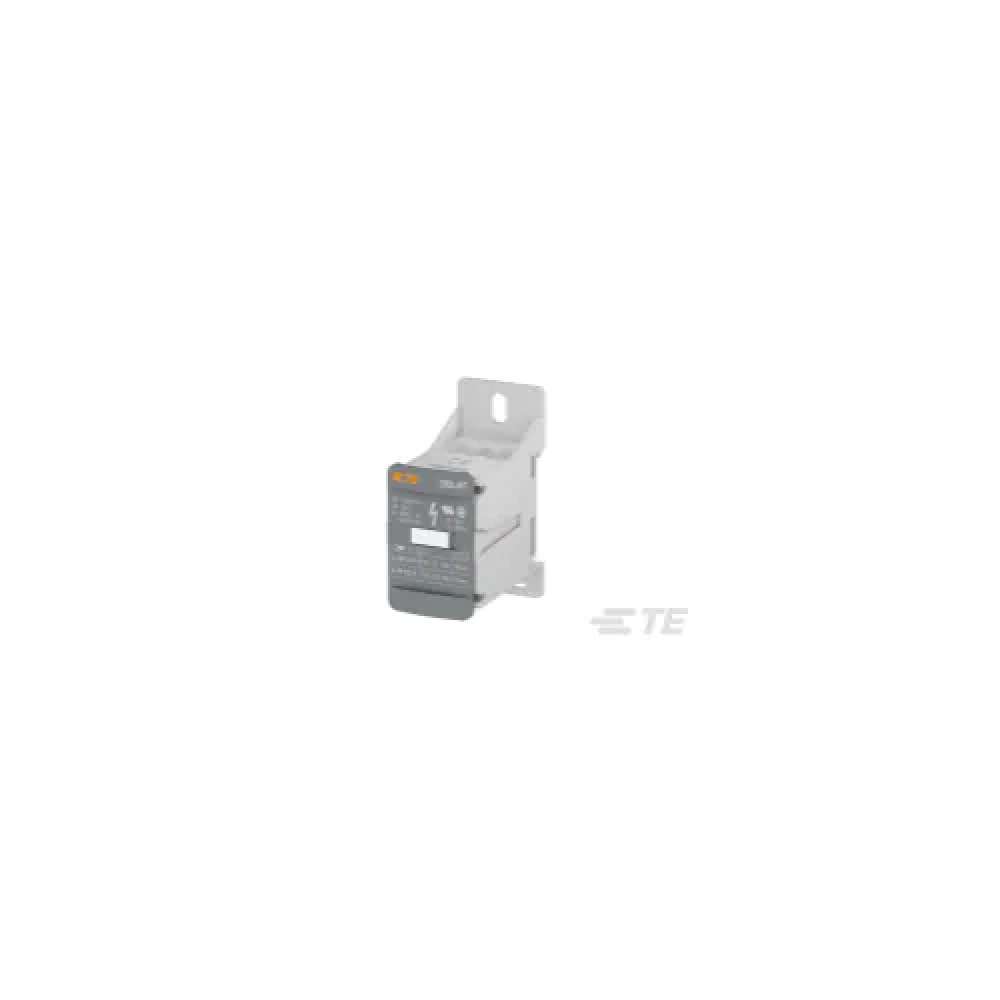

Configuration Features

• Number of Circuits : 1
• Number of Poles : 1
• Circuit Configuration : Single Pole
• Number of Positions : 7
• Number of Levels : 1
• Block Configuration : Feed-Through
• Number of Poles – Output 1 : 4
• Number of Poles – Main Circuit : 3

Electrical Characteristics

• Current Rating (IEC) (A): 80
• Current Rating (UL) (A): 80
• Input Current (Max) (A): 80
• Dielectric Test Voltage (V): 2200
• Voltage Rating (IEC) (VAC): 1000
• Short Circuit Current Rating (kA): 100
• Peak Withstanding Current Rating (kA): 27
• Voltage Rating (CSA) (V): 1000
• Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
• Voltage Rating (IEC) (VDC): 1500
• Short-Time Withstanding Current Rating @ 1s (A): 1920
• Power Loss (W): 2.56
• Impulse Withstanding Voltage Rating (IEC) (V): 8000

Body Features

• Product Weight : 70 g [ 2.469 oz ]

Contact Features

• Contact Current Rating (Max) (A): 80

Mechanical Attachment

• Connector Mounting Type : DIN Rail
• Tightening Torque – Main Circuit (in-lbs): 13.5 – 18
• Tightening Torque – Output 1 (in-lbs): 7.2 – 10.8
• Tightening Torque – Main Circuit (Nm): 1.5 – 2
• Connection Type : Screw
• Tightening Torque – Output 1 (Nm): .8 – 1.2
• DIN Rail Mounting Type : TH35-15, TH35-7.5

Housing Features

• Housing Color : Gray
• Housing Material : Polyamide

Dimensions

• Product Height : 66 mm [ 2.328 in ]
• Product Width : 28.4 mm [ 1.002 in ]
• Product Depth : 50.2 mm [ 1.771 in ]
• Rated Cross Section (AWG): 4
• Rated Cross Section (mm²): 16
• Product Spacing : 28.4 mm [ 1.11 in ]
• Tool Size – Main Circuit : 5.5 mm [ .216 in ]
• Hole Diameter – Main Circuit : 6.6 mm [ .256 in ]
• Wire Stripping Length – Output 1 : 11 mm [ .43 in ]
• Tool Size – Output 1 : 4 mm [ .157 in ]
• Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 10
• Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 6
• Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (AWG): 14 – 4
• Hole Diameter – Output 1 : 4.5 mm [ .177 in ]
• Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (mm²): 2.5 – 16
• Wire Stripping Length – Main Circuit : 15 mm [ .591 in ]
• Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (AWG): 14 – 6
• Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (mm²): 2.5 – 16
• Output 1 Capacity – 1 Insulated Ferrule (AWG): 14 – 10
• Output 1 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 6

Usage Conditions

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
• Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Operation/Application

• Circuit Application : Power
