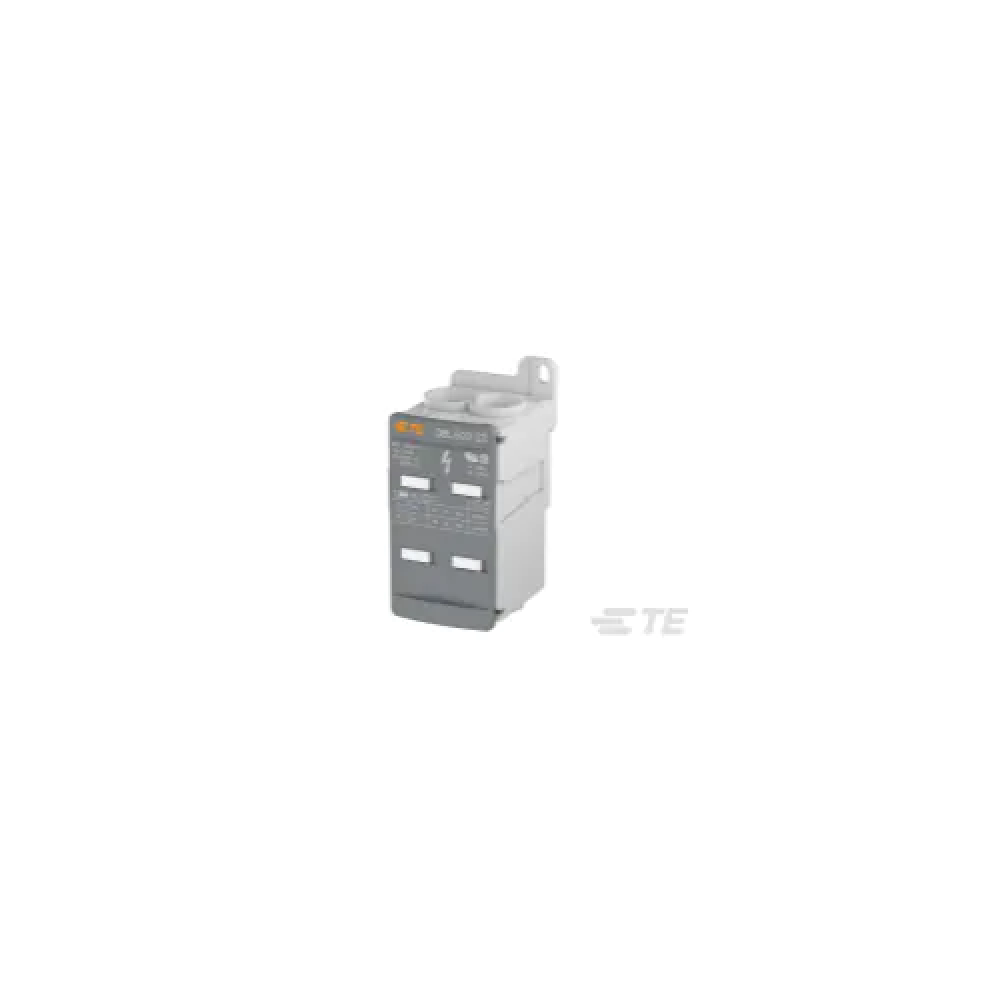

DBL500-22
- TE Internal #: 1SNL850001R0000
- TE Internal Description: DBL500-22
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Current Rating (IEC) (A): 500
- Current Rating (UL) (A): 510
- Number of Positions : 4
| TEKLİF VE BİLGİ İSTEYİN |
Product Type Features
- Sealable : No
- Connector & Contact Terminates To : Wire & Cable
Configuration Features
- Number of Circuits : 1
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Number of Positions : 4
- Number of Levels : 1
- Number of Poles – Output 1 : 2
- Block Configuration : Feed-Through
- Number of Poles – Main Circuit : 2
Electrical Characteristics
- Current Rating (IEC) (A): 500
- Current Rating (UL) (A): 510
- Input Current (Max) (A): 500
- Voltage Rating (IEC) (VDC): 1500
- Power Loss (W): 16
- Dielectric Test Voltage (V): 2200
- Voltage Rating (IEC) (VAC): 1000
- Peak Withstanding Current Rating (kA): 48
- Voltage Rating (CSA) (V): 1000
- Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
- Short-Time Withstanding Current Rating @ 1s (A): 22800
- Impulse Withstanding Voltage Rating (IEC) (V): 8000
Body Features
- Product Weight (g): 119
Contact Features
- Contact Current Rating (Max) (A): 500
Mechanical Attachment
- Connector Mounting Type : DIN Rail
- Tightening Torque – Main Circuit (in-lbs): 168 – 185
- Tightening Torque – Output 1 (in-lbs): 168 – 185
- Tightening Torque – Main Circuit (Nm): 19 – 21
- Connection Type : Screw
- Tightening Torque – Output 1 (Nm): 19 – 21
Housing Features
- Housing Color : Gray
- Housing Material : Polyamide
Dimensions
- Product Height : 46 mm [ 1.81 in ]
- Product Length (mm): 250
- Product Width : .24 mm [ 6 in ]
- Product Depth : 46 mm [ 1.81 in ]
- Rated Cross Section (AWG): 6
- Rated Cross Section (kcmil): 250
- Rated Cross Section (mm²): 95
- Product Spacing : .24 mm [ 95 in ]
- Tool Size – Main Circuit : 6 mm [ .24 in ]
- Hole Diameter – Main Circuit : 15.5 mm [ .59 in ]
- Tool Size – Output 1 : 28 mm [ 1.1 in ]
- Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 25 – 120
- Hole Diameter – Output 1 : 15.5 mm [ .59 in ]
- Tool Size – Output 2 : 28 mm [ 1.1 in ]
- Wire Stripping Length – Main Circuit : 28 mm [ 1.1 in ]
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (mm²): 4 – 250
- Output 1 Capacity – 1 Insulated Ferrule (AWG): 4 – 0
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (kcmil): 4 – 0
- Wire Stripping Length – Output 1 : 28 mm [ 1.1 in ]
- Main Circuit Capacity – Flexible Bar : 25 – 120 mm [ 4 – 250 in ]
- Input Dimensions – Main Circuit (in): 4 – 000
- Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 4 – 250
- Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp (mm²): 25 – 95
- Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp (AWG): 25 – 95
- Output 1 Capacity – 1 Insulated Ferrule (mm²): 25 – 95
Usage Conditions
- Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
- Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
- Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94V-0
- IP Rating : IP10
- Tool – Main Circuit : Allen Key
- Tool – Output 1 : Allen Key
