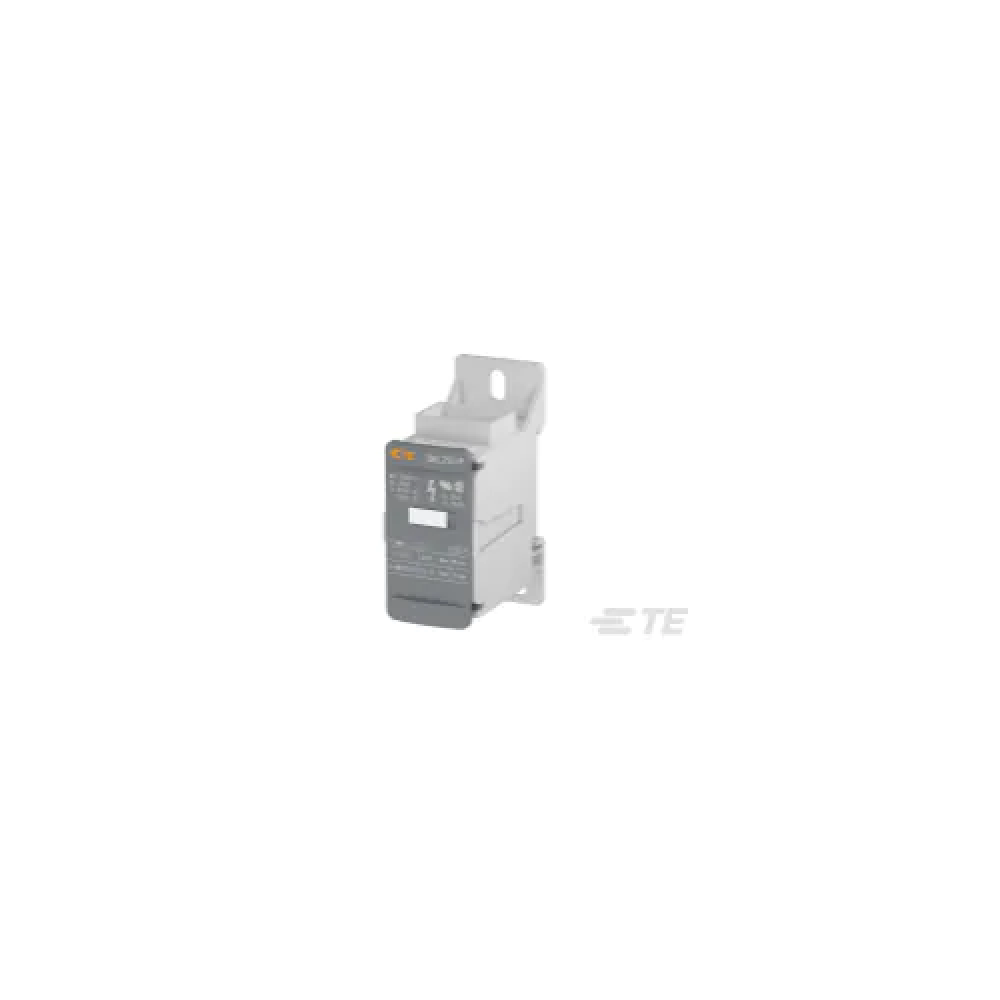

DBL250-F
- TE Internal #: 1SNL325060R0000
- TE Internal Description: DBL250-F
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Current Rating (IEC) (A): 250
- Current Rating (UL) (A): 250
- Number of Positions : 7
| TEKLİF VE BİLGİ İSTEYİN |
Product Type Features
- Sealable : No
- Connector & Contact Terminates To : Wire & Cable
Configuration Features
- Number of Circuits : 1
- Number of Poles : 1
- Circuit Configuration : Single Pole
- Number of Positions : 7
- Number of Levels : 1
- Block Configuration : Feed-Through
- Number of Poles – Output 1 : 6
- Number of Poles – Main Circuit : 1
Electrical Characteristics
- Current Rating (IEC) (A): 250
- Current Rating (UL) (A): 250
- Input Current (Max) (A): 250
- Dielectric Test Voltage (V): 2200
- Voltage Rating (IEC) (VAC): 1000
- Peak Withstanding Current Rating (kA): 23
- Voltage Rating (CSA) (V): 1000
- Operating Voltage Rating (UL & CSA) (Max) – Main Circuit (V): 1000
- Voltage Rating (IEC) (VDC): 1500
- Short-Time Withstanding Current Rating @ 1s (A): 11400
- Power Loss (W): 8
- Impulse Withstanding Voltage Rating (IEC) (V): 8000
Body Features
- Product Weight (g): 224
Contact Features
- Contact Current Rating (Max) (A): 250
Mechanical Attachment
- Connector Mounting Type : DIN Rail, Panel Mount
- Tightening Torque – Main Circuit (in-lbs): 120
- Tightening Torque – Output 1 (in-lbs): 18 – 26.5
- Tightening Torque – Main Circuit (Nm): 13.5
- Connection Type : Screw
- Tightening Torque – Output 1 (Nm): 2 – 3
Housing Features
- Housing Color : Gray
- Housing Material : Polyamide
Dimensions
- Product Height : 75 mm [ 2.95 in ]
- Product Width : 29 mm [ 1.14 in ]
- Product Depth : 50.7 mm [ 2 in ]
- Rated Cross Section (mm²): 6
- Product Spacing : 29 mm [ 1.14 in ]
- Tool Size – Main Circuit : 5 mm [ .2 in ]
- Wire Stripping Length – Output 1 : 11 mm [ .43 in ]
- Tool Size – Output 1 : 5.5 mm [ .22 in ]
- Input Dimensions – Main Circuit : 15.5 x 7.2 mm [ 0.59 x 0.28 in ]
- Output 1 Capacity – 1 Rigid Stranded Conductor (AWG): 14 – 6
- Output 1 Capacity – 1 Rigid Stranded Conductor (mm²): 2.5 – 16
- Hole Diameter – Output 1 : 6.7 mm [ .26 in ]
- Main Circuit Capacity – Solid Bar (mm): 12 x 4
- Main Circuit Capacity – Flexible Bar (mm): 3 x 9 x 0.8, 6 x 15.5 x 0.8
- Wire Stripping Length – Main Circuit : 15 mm [ .59 in ]
- Output 1 Capacity – 1 Insulated Ferrule (AWG): 14 – 6
- Output 1 Capacity – 1 Insulated Ferrule (mm²): 2.5 – 16
Usage Conditions
- Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
- Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]
- Storage Temperature Range : -55 – 110 °C [ -67 – 230 °F ]
Operation/Application
- Circuit Application : Power
Industry Standards
- UL Flammability Rating : UL 94V-0
- IP Rating : IP20
- Tool – Main Circuit : Allen Key
- Tool – Output 1 : Flat Screwdriver
